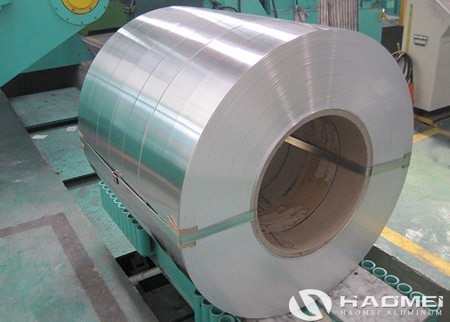

1050 Aluminum Strip | Aluminium Strip 1050

  • MOQ:2 to 5MT
  • Port:Shanghai,Qing Dao, China
  • Payment Terms:L/C,TT,CAD
  • Delivry Time:15 to 30days
Gallery
  • Details

Description of 1050 Aluminum Strip

Alloy:1050,1050A
Temper:HO,H12,H14,H16,H18,H22,H24,H26
Thickness:0.2mm-6.0mm
Width:80mm-2300mm
MOQ:5 tons per size
Mother coil:DC or CC
ID:76mm,152mm,408mm,508mm S
urface:Mill finishing,mirror finishing,checkered
Package:Export standard package with wooden pallet
Package way:Eye to sky or eye to wall
Delivery time:within 30days
Origin:Zhengzhou,China

Features of 1050 Aluminium Strip

1. Environmental
2. Light weight
3. Waterproof
4. Anti-rust
5. Weather resistance
6. Easy cleaning
7. Easy matching with other decoration material

Application of 1050 Aluminium Strip

1.Lighting, printing, packing, decorative, electronics surface, hot rolled thick plate, PS base plate, aluminium plastic base plate, aluminium curtain wall base plate, aluminium composite panel base plate, aluminium spacer, aluminium embossed sheet.
2.Interior:wall cladding,ceilings,bothrooms,kitchens and balconies,shutters,doors,curtain wall.
3.Exterior:wall cladding,facades,roofing,camopies,tunnels,column cover,renovations.
4.Advertisement:display platforms,signboards,fascia,shop fronts.

Chemical Properties  of 1050 Aluminium Strip

Alloy Designation Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks Others Aluminium
min
Numerical Chemical Sympols Each Total
1050 AI 99.5 0.24 0.40 0.05 0.05 0.05 - - 0.07 0.05 - - - 0.03 - 99.50

TOLERANCE of 1050 Aluminium Strip

TOLERANCE
Major Brand 1050(O)
Thickness 0.2-0.4 0.4-0.8 0.9-1.1 1.2-1.6 1.8-2.0
tolerance ±0.01 ±0.015 ±0.02 ±0.025 ±0.03
Width <100 100-200 201-500 501-1250 >1250
tolerance ±0.1 ±0.2 ±0.2 ±1 ±2
BURR AND COLLAPSE
The width of aluminum belt burr’s height collapsed side’s height
<0.2 0.01 ≥0.05-0.1
0.2-1.0 0.015
1.1-1.5 0.02
>1.6 0.03
MECHANICAL PROPERTY
U.T.S: 60-95N/mm2 Elongation: >25%
Density in 20°C :2.703kg/dm3 Max.resistance in 20°C:≤0.02825Ωmm2/m

1050 aluminum strip aluminium strip 1050
