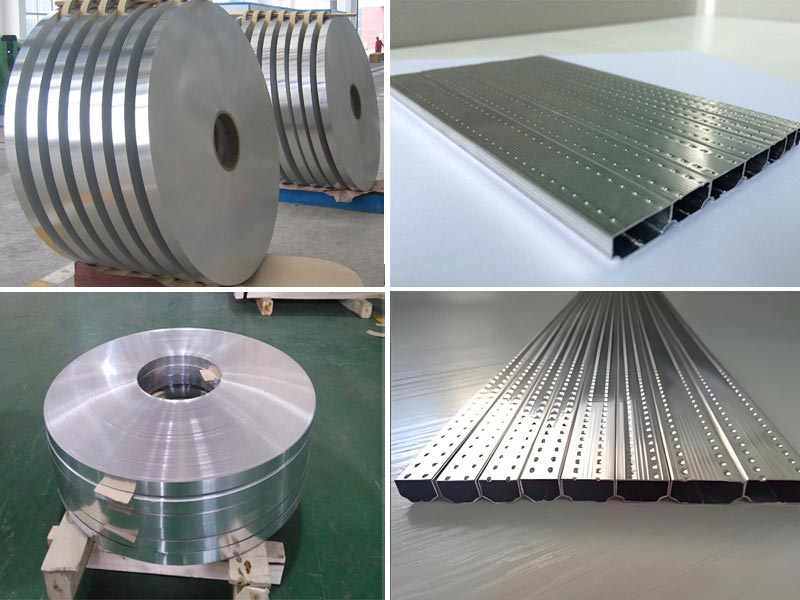

3003 H19 Aluminum Strip For Insulating Glass Spacer Bar

In modern building insulating glass systems, spacers are core components controlling glass sealing performance, structural stability, and energy efficiency. The choice of aluminum material directly determines the service life, anti-aging ability, and suitable application scenarios of the finished insulating glass unit. 3003 H19 aluminum strip, with stable alloy properties, mechanical properties suitable for deep processing of spacers, and excellent environmental resistance, has become the core substrate material for high-end insulating glass spacer bar manufacturing. As a professional manufacturer deeply involved in the export of aluminum strips, Haomei Aluminum, relying on mature rolling technology, standardized quality control system, and global adaptation solutions, has created high-precision 3003 H19 aluminum strips for insulating glass spacer. These aluminum strips can fully match the industrial production standards and building engineering needs of global markets, making them the preferred raw material for insulating glass deep processing enterprises.



Why 3003 Aluminum is the Golden Choice for Spacer Bars?
3003 aluminum alloy belongs to the Al-Mn series of rust-resistant aluminum, with manganese content strictly controlled at 1.0%-1.5%. This composition design gives the material three core advantages: excellent corrosion resistance, excellent workability, and moderate strength. Compared to pure aluminum (1060/1100), 3003 has approximately 20% higher strength, fully meeting the structural support requirements of spacer bars. Compared to 5-series alloys, it is less expensive and has better weldability, making it particularly suitable for continuous bending forming processes. The H19 temper is our customized heat treatment process for spacer bar applications. Through precise cold working hardening and stabilization treatment, the material achieves an ideal balance of tensile strength 160-180MPa, yield strength ≥140MPa, and elongation ≥3%—ensuring both the rigidity of the formed spacer bar and sufficient toughness to cope with stress changes during installation and use.

As an export-oriented enterprise, we are well aware of the stringent requirements of international customers for dimensional accuracy and consistency. Haomei's 3003 H19 aluminum strip employs the following key processes:
1. Precise Composition Control:
Real-time monitoring using a German spectrometer ensures that the deviation of elements such as manganese and copper is ≤0.05%, avoiding performance instability caused by composition fluctuations.
2. Rolling Precision Management:
Thickness tolerance is controlled within ±0.01mm, and width tolerance within ±0.1mm, solving common problems of "deviation" and "poor sealing" in spacer production.
3. Optimized Surface Treatment:
A special cleaning process removes oil and oxide layers, achieving a surface roughness Ra≤0.3μm, improving adhesion strength with butyl rubber, and ensuring the long-term airtightness of insulated glass.
4. Straightness Control:
Tension straightening technology ensures that the straightness of each roll of aluminum strip is ≤2mm/m, guaranteeing precise angles and no twisting deformation during continuous bending.
These meticulous details have enabled our products to pass international standard certifications such as ASTM B209 and ISO 6361, allowing direct compatibility with mainstream spacer production lines worldwide.

The service life and energy efficiency of insulating glass largely depend on the quality of the spacer. The core advantages of 3003 H19 aluminum strip for insulating glass spacer bar are:
- Structural stability:
The high yield strength of the H19 temper ensures dimensional stability of the spacer under temperature changes (-40℃ to 80℃) and wind pressure, preventing seal failure caused by glass displacement.
- Corrosion resistance:
The rust-resistant properties of 3003 alloy, combined with passivation treatment, effectively resist corrosion from outdoor environments such as curtain walls and windows, ensuring a service life of over 15 years for insulated glass.
- Improved processing efficiency:
Excellent bending performance increases spacer production line speed by 15%-20%, reducing scrap rate to ≤1%, significantly lowering customer production costs.
- Balanced thermal performance:
Compared to stainless steel spacers, 3003 aluminum strip has a more moderate thermal conductivity. Combined with a warm edge strip design, it can reduce the U-value of insulated glass by 0.1-0.2 W/(m²·K), improving building energy efficiency.

Regarding price of 3003 h19 aluminum strip for insulating glass spacer bar, based on the current aluminum ingot price (approximately USD 3,500/ton), our 3003 H19 aluminum strip export FOB price is USD 3,800-4,000/ton, with an MOQ as low as 1 tons. We support cutting and packaging according to customer requirements, with a stable delivery time of 15-20 days.

3003 H19 aluminum strip is the core substrate supporting the stable operation of insulated glass systems, determining the core performance of insulated glass in terms of sealing, energy saving, and durability. Haomei Aluminum provides highly stable and adaptable aluminum strip products to global insulated glass deep-processing enterprises with stringent production standards, precise market customization services, and a comprehensive export support system. With solid product quality and global service experience, we can help customers avoid various procurement problems such as material performance fluctuations, processing mismatches, and non-compliance with standards. We are a high-quality aluminum strip supplier that is worthy of long-term cooperation.
